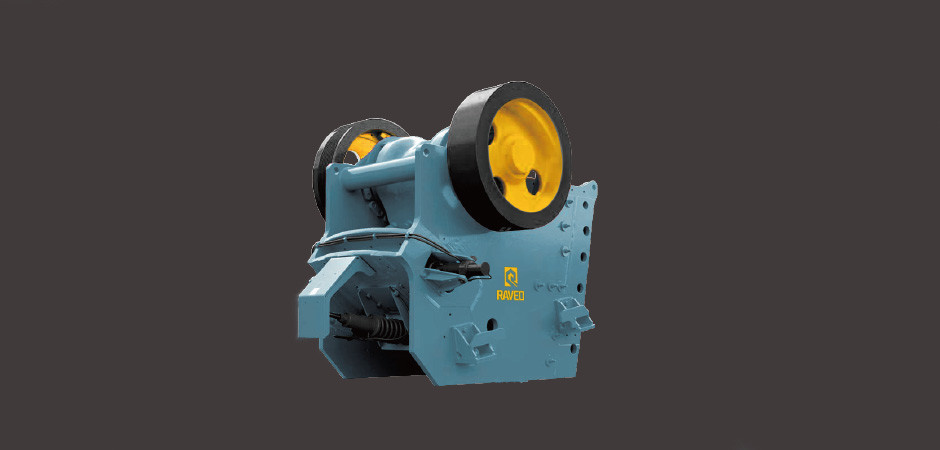

Euro Jaw Crusher Introduction
New generation crusher, European jaw crusher is born with innovative significance. It is newly designed and improved by our experts on basis of their more than 39 years’ crusher manufacturing and design experience. The unique design concept makes this series crusher achieve perfect combination between crushing efficiency and operating cost. Meanwhile, it has a wide range of application, particularly is suitable for crushing hard rock, such as basalt, river pebbles.
Euro Jaw Crusher Working Principle
The crushing method of European type jaw crusher is dynamic squeeze. The working principle is: the electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or split when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
Euro Jaw CrusherFeatures
- 1. Durable moving jaw assembly.
- 2. Integral cast steel bearing housings.
- 3. Fast and safe setting adjustment.
- 4. Reasonable cavity design.
- 5. Larger-size and larger-carrying-capacity bearings.
- 6. Compact & robust structure.
|Max Feed Size||mm||800*500||900*600||1100*700||1100*800||1200*850||1300*830||1200*1100||1300*1150||1500*1200||1500*1300|
|Max Feed Length||mm||450||540||630||720||760||750||1000||1050||1100||1200|
|Discharge Opening Range||mm||40-160||50-175||50-200||75-215||75-250||70-250||110-260||125-280||125-300||150-300|
