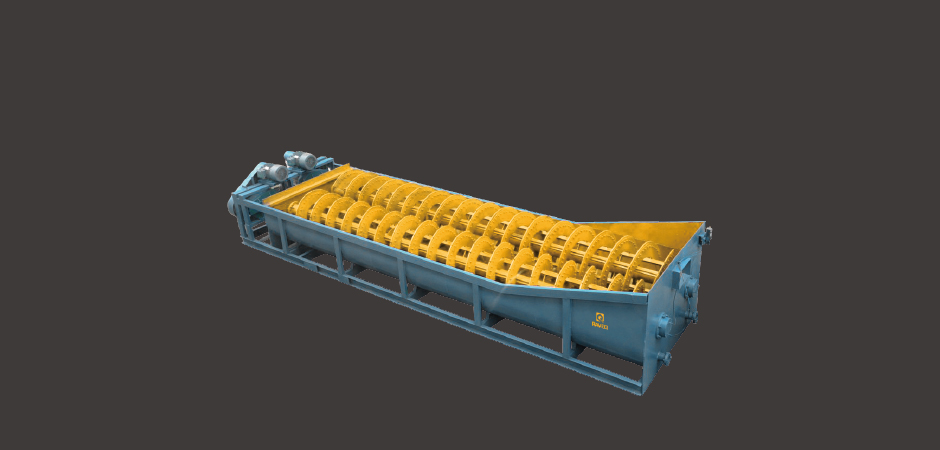

XL Sand Washer

XL Sand Washer

XL series screw sand washing machine is designed to bigger capacity and higher cleaning level than traditional washing machines. It sets three functions—washing, dewatering, classifying—as a whole, saving the labor and working site space. Now this series sand washing machine has been widely used in various industries.

Working Principle:
Sand washing machine drives impeller of water channel to make constant circle movement in the water channel by the transmission of motor and reduction gears, then stir, overturn and elutriate dinas or slag granule of water channel in the water and discharge material after dehydration in the impeller.

1.Long service life and no quick-wear part, leading to low investment cost and operation cost.
2.High capacity and less loss of fine products.
3.Transmission bearings of impeller depart from water and material, avoiding being eroded.
4.Higher washing-cleanliness than traditional ones.
5.Set functions as a whole, reducing investment costs of other machines.


Model Screw  Quantity Screw  Diameter (mm) Sink Length (mm) Selected Granularity (mm) Capacity (t/h) Speed  of Screw (r/min) Motor Power (kw) Water  Consumption (t/h) Weight of  Machine (kg) Overall Dimension (mm)
XL915 1 915 7585 ≤10 100 21 11 10-80 6200 8420×2810×3960
2XL915 2 915 7585 ≤10 200 21 11×2 20-160 11500 8420×3970×3960
XL1115 1 1115 9750 ≤10 175 17 18.5 20-150 10900 10770×3950×4860
2XL-1115 2 1115 9750 ≤10 350 17 18.5×2 40-300 17800 10770×5260×4860
